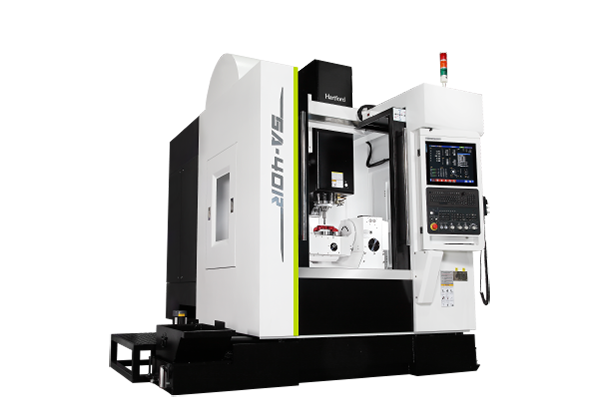

5 Axis Vertical Machining Center
5 Axis AI Vertical Machining Center
With more comprehensive functions, faster speed and higher precision
One & only :
1. High quality self-made spindle to ensure spindle run-out within 5μm.
2. Oil-air lubrication spindle：Spindle bearing is lubricated by lubrication oil, spindle is capable of long term running.
全系列機型軌道面五年保固
超大立柱及高寬底座設計
一體成型底座設計
1. Over size column & widest base design：Increase width of interface between the column and base, which increase machine rigidity and stability.
2. One-piece bed design：Separates oil and coolant effectively, which prevents coolant contamination problems.
Z axis servo motor coupled directly to ballscrew
Z axis servo motor coupled directly to ballscrew: No more timer belt, the motor is connected directly to the ballscrew, which get rid of the risk of backlash or servo drag and Increase machining efficiency and dependability.
1. Decades of machine tool manufacturing technology, plus new developed AI technology, makes the machining accuracy/efficiency/finish almost equal to the level of Japanese machines
2. “Super Speed Cycle time” makes cutting efficiency 15% ~ 50% higher than Taiwanese peers
．Model：5A-40R
．Spindle ：15,000 rpm DDS spindle 12.5 kW
．Cutting material：Alumium die cast ADC12
Tolerance of 3D contouring accuracy conforms to the standard:
Result of 114 spots test is approved within tolerance (± 0.02mm).
OMV (On Machine Verification): 3D Inspection is directly employed based on OMV system, which ensures each workpiece is qualified, and efficiency is enhanced to reduce time on workpiece upload/load on the table
Worktable size
Ø 320
mm
Max. load (Average)
Horizontal: 200 Tilting: 100
kg
T slot Width x Pitch
12 x 90° (4)
mm
X axis travel
410
mm
X axis travel
610
mm
Z axis travel
510
mm
A axis travel
+ 30° ~ -120°
degree
C axis travel
± 360°
degree
Spindle nose taper
#40
Spindle speed (DDS)
10000/12000/15000
rpm
Capacity
A : 24(30/40)
pcs
Tool shank
BT40 ( BBT / CAT / DIN )
Spindle drive motor (Cont. / 30 min)
7.5 / 11 opt.15 / 18.5
kW
